Step-by-step: Calculating Load Capacity for Your Temporary Bridge Project
Temporary bridge load capacity is the maximum safe weight a short‑term structure can carry under expected dead, live and environmental actions. Accurate calculations protect people, meet permitting requirements, and keep project costs realistic. This guide explains why precise ratings matter, how engineers collect the right project data, the standards that commonly govern temporary bridge ratings (including AASHTO HS‑20), and step‑by‑step checks for bending, shear and deflection. You’ll find formulas, timber‑specific material references, worked examples for preliminary estimates, and practical inspection and monitoring advice for in‑service performance. The guide also points to tools and resources and describes how an experienced manufacturer can support engineered checks and custom solutions. Throughout, the focus is on reliable, practical methods for rating temporary bridges—with emphasis on stress‑laminated timber systems where relevant.
What basic loads should you consider when rating a temporary bridge?
Basic loads define the demand on a temporary bridge and are combined into design actions for structural checks. Understanding dead, live and environmental loads—and how impact or dynamic factors change them—lets you compute realistic internal forces and deflections for members and supports. This section defines each load type, gives typical units and examples, and explains how tributary areas and distribution factors convert system loads into member demands. A concise table follows to help with quick, preliminary calculations.
The table below summarizes the primary load types and practical notes to use during early‑stage estimates.
This quick reference clarifies how to turn qualitative load descriptions into quantitative inputs for structural analysis. The sections that follow show how to quantify each load for timber and other materials.
What is dead load and how does it affect permissible bridge weights?
Dead load is the sum of permanent weights: deck, diaphragms, stringers, fasteners and any fixed attachments. It establishes the baseline structural demand and often governs bending and deflection for longer spans. To quantify dead load, start with component unit weights and cross‑sectional areas: for timber, use typical density ranges (about 400–600 kg/m³ for many engineered products) and include allowances for coatings, wearing surfaces and hardware. For example, a 3.0 m‑wide stress‑laminated timber deck 0.15 m thick produces a predictable kg/m² value that converts to kN/m for beam loading; add stringers and connectors to complete the dead load estimate. Accurate dead‑load estimates reduce uncertainty in live‑load checks and avoid overly conservative designs.
Gather manufacturer section properties and verify timber moisture content and protective layers to refine dead‑load values—this reduces the risk of underestimating long‑term weight, settlement and serviceability issues.
How do live loads affect temporary bridge capacity?
Live loads change over time and come from vehicles, equipment and pedestrians. For temporary road bridges, designers typically use standard vehicle models such as AASHTO HS‑20 or actual equipment axle patterns when known. Concentrated live loads create peak bending moments and shear at specific span locations; influence‑line analysis or load placement studies identify worst‑case positions for member checks. For preliminary design, combine uniform lane loads with concentrated axles to represent construction traffic, and model heavy equipment with actual axle weights when available. Include dynamic amplification and impact factors where moving or rapid traffic is expected.
Key steps to map live loads:
- List expected vehicle types and maximum axle loads.
- Use influence lines to find locations that maximize moment or shear.
- Apply appropriate dynamic amplification/impact factors for moving loads.
These steps lead directly into standards‑based rating and how AASHTO guidance is applied to temporary bridges.
How does AASHTO affect temporary bridge load ratings?
AASHTO LRFD and standard vehicle models like HS‑20 provide consistent representations of highway live loads used to design and rate bridges. Using AASHTO‑based models gives comparable load definitions and load combinations for strength and serviceability checks and aligns calculations with many state DOT expectations. Local regulations can modify or supersede some assumptions, so AASHTO is often the baseline for safety and posting decisions while designers adjust for project‑specific traffic or emergency access. The following subsections explain HS‑20 and how local rules interact with national standards.
What is the AASHTO HS‑20 load model for temporary bridges?
HS‑20 is an AASHTO truck model commonly used as a conservative design live load representing highway truck traffic. It defines axle loads at set spacings that generate concentrated moments and shears for girder and deck checks. HS‑20 corresponds roughly to a 72,000 lb (≈32,700 kg) truck pattern with specified axle groupings and lane allowances; designers position those loads to obtain worst‑case bending and shear. When rating temporary bridges, calculated internal forces from HS‑20 (or an equivalent) are compared to member capacities using LRFD or allowable stress methods. HS‑20 is a defensible baseline for posting, but permitted loads may be adjusted by project agreement or local authority direction.
Understanding HS‑20 lets you convert vehicle traffic into member demands that map directly to allowable stresses for timber and other materials.
How do local regulations affect load calculations for temporary bridges?
Permitting authorities and state DOTs may require changes to standard load assumptions, posting limits, or formal inspection regimes before traffic is allowed on a temporary structure. Addressing local requirements early avoids costly redesign or operational delays. Typical local rules include overweight permits, seasonal restrictions, mandatory posting of allowable loads, and site‑specific geotechnical conditions that influence foundation design and posting. Consult permit documents and coordinate with authorities to confirm whether HS‑20 is acceptable and what documentation (stamped drawings, load‑rating reports) is required. Early regulator engagement streamlines approvals and ensures calculated capacity matches operational expectations.
Coordination with regulators informs final posting, monitoring and inspection plans for any temporary bridge deployment.
What are the step‑by‑step calculations for temporary bridge load capacity?
A repeatable calculation workflow moves from data collection to material properties, load computation, factor application and demand‑vs‑capacity checks. Following a structured sequence reduces errors and documents assumptions for permitting. Core steps include: gather site and traffic data; define geometry and tributary areas; select material properties; compute dead, live and environmental loads; apply load and resistance factors; run bending, shear and deflection checks; and record results with clear acceptance criteria. The numbered list below outlines that sequence, followed by timber‑specific guidance.
- Gather project data (span, width, traffic, geotech).
- Select material properties (E, allowable stress, density).
- Compute dead load per unit area and tributary widths.
- Model live loads and worst‑case positions (HS‑20 or actual axles).
- Apply LRFD or ASD factors and compute factored demands.
- Check bending, shear and deflection against capacity and service limits.
- Document load rating, posting and inspection plan.
When sharing calculation examples and material tables, note that manufacturers supply element‑level data for stress‑laminated systems and can produce custom calculations or quotes from project geometry and traffic inputs. Stress‑laminated timber bridges are commonly offered with rated capacities up to 40 tons and can be checked for AASHTO HS‑20 compliance; manufacturers can run project‑specific load checks on request.
How do you collect project data for load calculations?
Accurate inputs are essential: span length, bridge width, expected traffic mix, maximum equipment axles and spacings, subgrade bearing capacity and environmental conditions determine load paths and support reactions. Use site surveys for geometry, client equipment specs for axle loads, and geotechnical reports for allowable soil bearing and settlement estimates. If geotech is unavailable, adopt conservative provisional values with a plan for verification. For temporary bridges, define staging scenarios (single‑lane traffic, equipment placement) so worst‑case positions can be modeled. Well‑recorded inputs reduce conservative assumptions and enable more efficient designs and postings.
Careful data gathering directly informs material selection and the distribution factors used in member checks.
How are material properties determined for timber bridges?
Key timber properties for calculations include modulus of elasticity (E), allowable bending stress (Fb) and density. These values vary by species, engineered product, moisture content and lamination method, so use accredited design tables or manufacturer data. Engineered products like glulam or stress‑laminated assemblies typically come with manufacturer‑provided design properties; allowable stresses depend on grade and treatment. When the project is critical, sample testing for moisture content and grade verification reduces uncertainty. The comparison table below gives typical property ranges for timber, steel and aluminum to support preliminary material selection.
Use manufacturer data for final design values; the table helps translate material choice into expected stiffness and strength ranges for bending and deflection checks.
How do you calculate dead, live and environmental loads?
Compute dead load by summing unit weights times component volumes (deck, stringers, diaphragms, wearing surface) and converting to linear loads using tributary widths. For live loads, decide whether to use uniform lane loads or concentrated axle loads: use influence lines to place concentrated loads where they produce maximum bending moment or shear, and apply load distribution factors to allocate lane or axle loads to supporting members. Environmental loads—wind, snow, hydraulic forces and impact from debris—are calculated per applicable codes or site hydraulic studies; for bridges exposed to flooding include buoyancy and scour checks for abutments. Simplified formulas and conservative assumptions are useful for preliminary estimates, but final checks need site‑specific inputs and verified design factors.
Quick formulas and practices:
- Dead load (kN/m) = Σ(unit weight × cross‑sectional area) per meter.
- Use influence lines to place live loads for peak moments and shears.
- Compute environmental forces with site‑specific inputs, especially for hydraulic loads.
These computations establish the factored demands used in the structural checks described next.
How are safety and load factors applied in structural analysis?
Design safety is enforced by applying load and resistance factors (LRFD) or by using allowable stresses with safety margins (ASD). LRFD combines factored loads (for example 1.25D + 1.5L) and compares them to reduced capacities, while ASD compares unfactored service loads to allowable stresses that include safety margins. For temporary bridges, select the approach required by the owner or permitting authority; LRFD is common for public infrastructure, while ASD remains in use for some timber designs.
Example: perform an LRFD bending check by applying prescribed load factors to dead and live loads, computing the factored moment and verifying factored moment ≤ φMn (φ = resistance factor).
Record all assumptions and factor applications in the calculation package for permit review and future inspection.
Comparing LRFD and ASD outcomes helps set conservative posting and provides contingency for unexpected load cases.
How do you compare calculated demands with material strengths?
Final acceptance requires demand‑versus‑capacity checks for bending, shear and deflection. Compute internal demands from factored loads, then verify stresses are below allowable values or that factored capacities are sufficient; confirm serviceability limits (deflection) under service loads. For bending, calculate section modulus and compare M/S to allowable bending stress (or use φMn for LRFD). For shear, compute capacity from material shear strength and geometry. For deflection, use EI from the selected material and check against limits such as span/180 or project‑specific criteria. Present results in a clear table and recommend posting where capacity is limited. If any check fails, iterate on geometry, member sizing or foundation design until all criteria are met.
Completing these comparisons finalizes the load‑rating workflow and provides the basis for posting, inspection and operation.
What factors influence the load capacity and safety of temporary bridges?
Beyond basic loads, several factors affect performance and risk: material choice, span and support configuration, foundation bearing capacity, environmental exposure and inspection/monitoring programs. These factors interact with loads—material stiffness affects deflection under live loads, foundation stiffness changes load distribution, and environmental degradation reduces capacity over time. Designers must balance deployment speed, cost and durability when selecting materials and detailing connections, and put an inspection plan in place to detect condition changes that could reduce capacity.
How do different materials influence temporary bridge load capacity?
Material choice determines strength, stiffness, density and durability trade‑offs. Timber offers a good weight‑to‑strength ratio and fast onsite assembly for stress‑laminated systems; steel gives high stiffness in smaller members; aluminum is lighter with moderate stiffness. Timber’s lower modulus of elasticity produces larger deflections for the same span versus steel, but engineered timber and stress lamination can increase stiffness to meet HS‑20 in many cases. Durability and maintenance differ: timber needs moisture protection, steel requires corrosion control. Installation speed and cost also influence decisions. Choose material based on required capacity, allowable deflection, site exposure and logistics.
Understanding these differences helps you match material selection to strength and serviceability targets for temporary installations.
How do span length and foundation design affect load distribution?
Span length and support conditions (simply supported versus continuous) define bending moments, shear and deflection. Longer spans raise bending demands and usually require larger section modulus or additional supports. Foundation stiffness and allowable bearing control settlement and load sharing—soft foundations can produce uneven distribution, local overstress and increased rotations that raise member demands. Temporary abutments and cribbing should be sized to safely distribute loads without excessive settlement; geotechnical input on bearing capacity and seasonal groundwater is essential. Where foundations are marginal, shorten spans or increase bearing area to protect structural integrity.
Recognizing geometric and foundation impacts lets designers optimize spans and avoid unnecessary material or posting requirements.
Which environmental conditions influence temporary bridge performance?
Environmental loads and degradation—wind, snow, flood forces, freeze/thaw cycles, moisture‑driven decay and UV exposure—affect both immediate load effects and long‑term capacity. Timber strength can degrade from moisture and fungal attack; steel sections lose capacity due to corrosion. Floods introduce uplift, lateral and impact forces from debris that must be modeled separately from static checks. Integrate protective measures (coatings, drainage, anchoring) and seasonal deployment planning into the inspection schedule to manage these risks. Accounting for environmental conditions in design and inspection preserves load‑carrying performance during service.
Proactive environmental risk management complements structural design to maintain safe capacity over the service period.

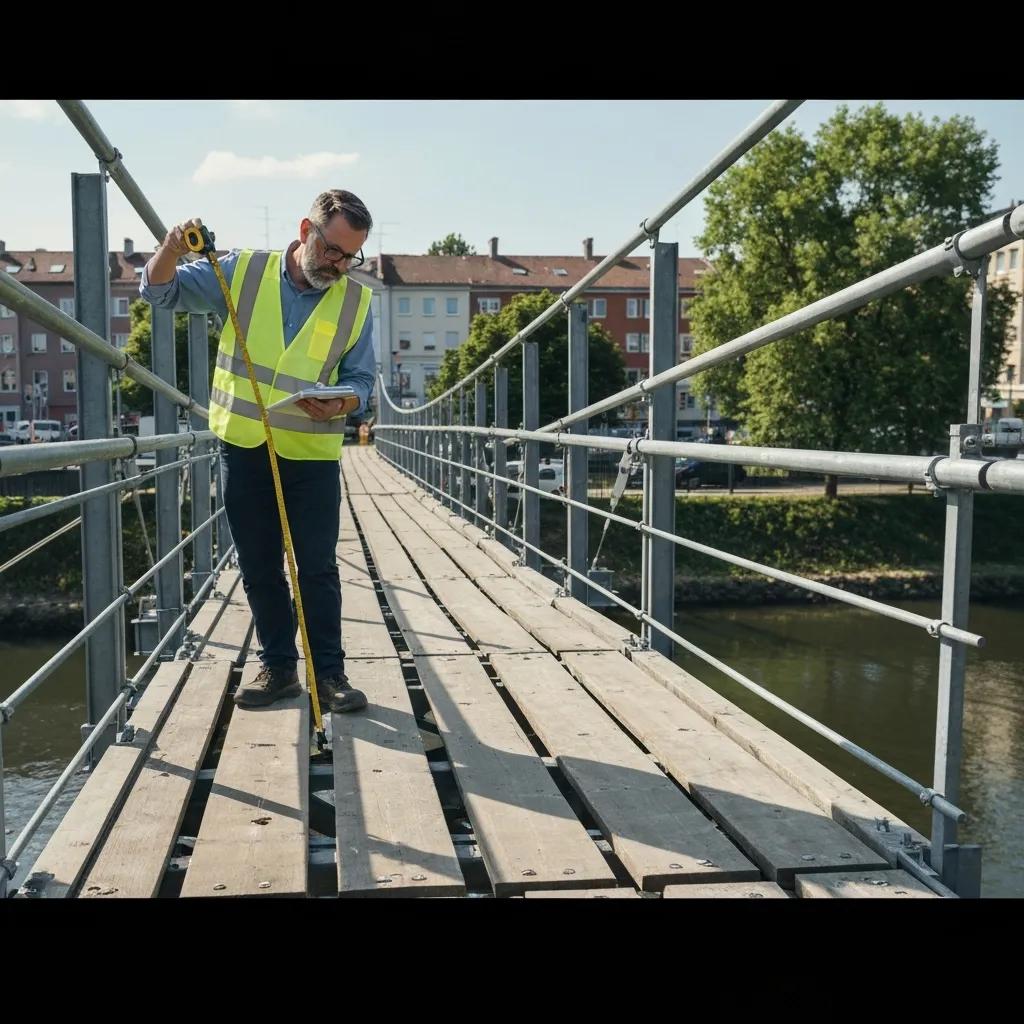

How are temporary bridges inspected and monitored for safety?
Regular inspections and targeted monitoring verify that assumed capacities remain valid and detect emerging issues that may require posting or closure. Visual inspections should be supplemented with detailed checks after extreme events or heavy use. Typical checklists cover deck condition, fastener tightness, bearing movement, abutment settlement and visible signs of decay or corrosion; inspection frequency depends on traffic and environment. Load testing or instrumented monitoring (strain gauges, deflection sensors) can validate calculations when crossings are critical or when heavier loads are expected. Keep detailed records of inspection findings and remedial actions as part of the operational record required by many permitting authorities.
A clear inspection and monitoring plan reduces uncertainty and supports safe operation under posted capacities.
How does E&H Manufacturing ensure optimal load capacity in temporary bridges?

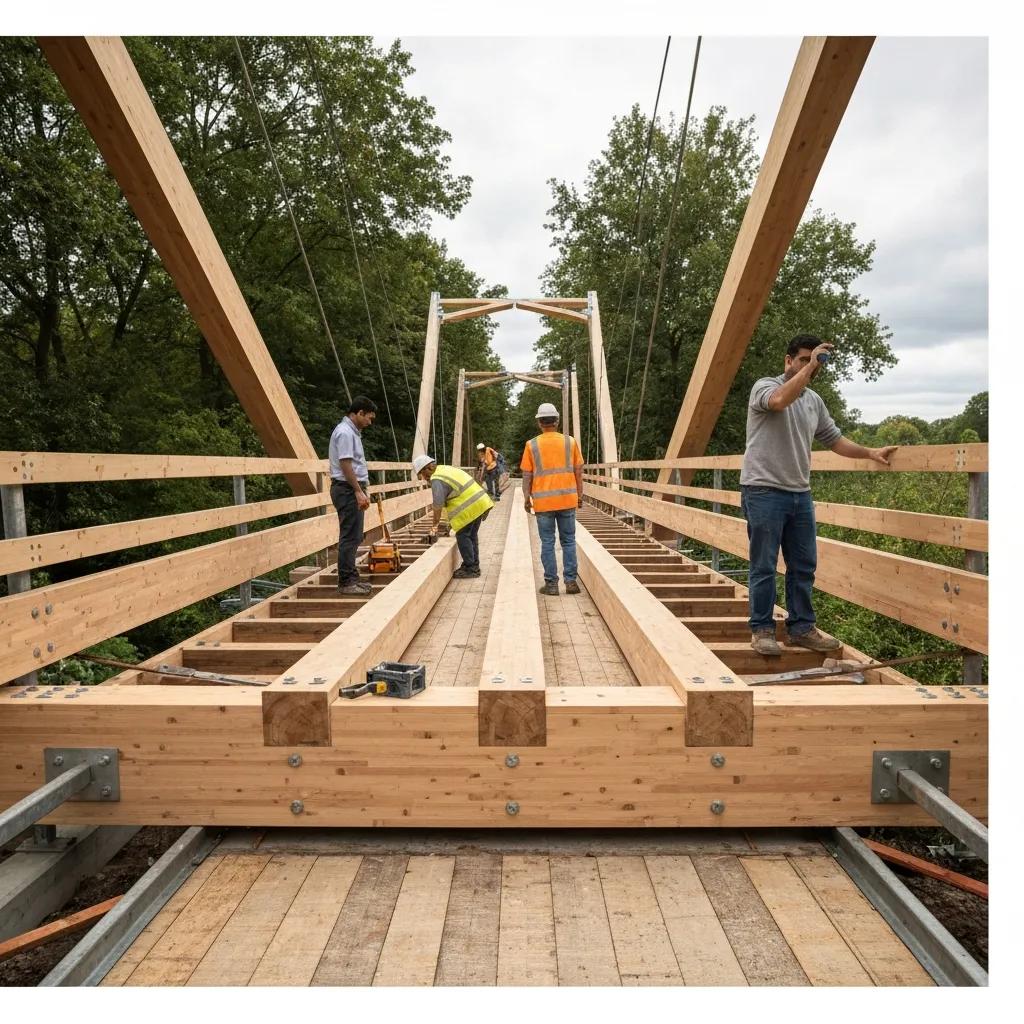

E&H Manufacturing, Inc. provides engineering support and stress‑laminated timber bridge solutions that follow the steps outlined above. We adapt designs to span, load and foundation conditions and work to achieve AASHTO HS‑20 rating goals where appropriate. Our product range includes stress‑laminated timber bridges designed for rapid deployment and temporary use, with stated capacities up to 40 tons in suitable configurations. E&H’s process combines manufacturer‑provided material data, project geometry and engineered checks for bending, shear and deflection before shipment, and we can deliver documented load calculations to support permitting. The manufacturer’s role is to supply reliable element data and collaborate on details so preliminary calculations convert cleanly into shop drawings and field erection plans.
What custom solutions does E&H offer for stress‑laminated timber bridges?
E&{H customizes stress‑laminated systems by adjusting span lengths, widths and lamination patterns to reach required capacities while optimizing material use and erection speed. Typical custom options include changing lamina thickness and count to raise bending capacity, designing rapid‑deployment bearing and abutment interfaces for varied sites, and providing pre‑engineered connection details to speed assembly. We also model equipment loads, supply stamped calculations when required for permitting, and recommend protective treatments for durability in aggressive environments. These services help designers meet HS‑20 requirements or reach the stated 40‑ton capacities when projects demand higher performance, including specialized needs like temporary logging bridges for forestry operations.
When projects need tailored designs, manufacturer collaboration helps convert calculations into constructible components efficiently.
Are there real‑world examples of E&H temporary bridge load capacities?
E&H’s stress‑laminated timber bridges have been used on projects that needed quick deployment and significant load capacity—some configurations are cited at up to 40 tons and have been engineered to meet AASHTO HS‑20 where required. Case summaries typically describe the site constraint (access, schedule), the stress‑laminated solution delivered, the stated capacity and outcomes such as restored access and lower mobilization cost versus heavier steel options. For project‑specific examples or detailed case studies, E&H can provide references and engineered calculation packages on request to show how assumptions and tested capacities performed in the field. Those references help owners compare material choices and expected operational results.
Manufacturer case information supports decision‑making when evaluating timber‑based temporary bridge options.
Where can you find resources and tools to calculate temporary bridge load capacity?
Engineers typically combine standards references, calculation spreadsheets, influence‑line analyses and manufacturer data to produce reliable load ratings. Authoritative sources include AASHTO LRFD specifications, state DOT manuals and hydraulic/geotechnical references for environmental and foundation inputs. For preliminary estimates, downloadable spreadsheets and simple beam calculators convert span, dead load and lane load into bending moments and deflections, while influence‑line tools and structural analysis software refine worst‑case positions and member forces. Below are practical tool categories and starter recommendations that bridge the gap between initial estimates and engineered calculations.
Useful tool categories include single‑span bending calculators, influence‑line analyzers and downloadable load‑rating worksheets tailored to timber members.
Handy preliminary tools and their uses:
- Span bending calculators for quick maximum moment estimates.
- Influence‑line tools to identify axle placement and peak demands.
- Load‑rating spreadsheets that combine material properties with factor applications.
These tools are helpful for planning but should be followed by manufacturer data and stamped calculations for permitting in many jurisdictions.
Are there interactive tools or calculators for preliminary load estimates?
Interactive tools—from single‑span moment calculators to influence‑line analyzers and load‑rating spreadsheets—are useful for fast preliminary estimates and let you explore span, section and loading scenarios before detailed analysis. Use them cautiously: they give early insight but don’t replace site‑specific engineering, geotechnical input or manufacturer property verification needed for final ratings. For stress‑laminated timber decks, manufacturer spreadsheets that account for lamina configuration, glue behavior and fastener patterns provide more reliable preliminary outputs. If a quick tool indicates marginal results, request detailed engineered calculations or a custom quote from a manufacturer to confirm final capacity.
For projects needing engineered verification, E&H Manufacturing can supply project‑specific calculations and quotes reflecting actual lamina properties and connection details.
What FAQs address common questions about temporary bridge load limits?
Practitioner questions often focus on converting HS‑20 ratings into allowable posting, inspection frequency, and when to require instrumentation or load testing. Short answers below point to the relevant sections above. When a question needs a project‑specific response, consult a manufacturer or licensed engineer so calculations reflect field conditions and permitting requirements.
- How is HS‑20 used for posting? HS‑20 is a standard design truck for rating; posting depends on the calculated capacity relative to HS‑20 demand and any local permitting rules.
- When should I perform load testing? Load testing is recommended for critical crossings or when calculated capacity is marginal compared with expected traffic.
- How often should temporary bridges be inspected? Inspection frequency depends on traffic intensity and environmental exposure; frequent visual checks plus scheduled detailed inspections are common.
Frequently Asked Questions
What are the key considerations when selecting materials for temporary bridges?
Select materials by weighing strength, stiffness, weight and durability. Timber gives a favorable weight‑to‑strength ratio and fast assembly, while steel provides higher stiffness in smaller members. Material choice affects deflection limits and maintenance: timber needs moisture protection; steel needs corrosion control. Logistics—installation speed and cost—also matter. Ultimately, pick the material that meets the required capacity, deflection criteria and site conditions.
How do environmental conditions affect temporary bridge design?
Environmental conditions strongly influence design and performance. Wind, snow, flooding and freeze/thaw cycles change both immediate loading and long‑term integrity. Moisture can cause timber decay and corrosion can weaken steel. Account for these factors during design and add protective measures—coatings, drainage, anchoring—along with a tailored inspection program to mitigate risks and maintain capacity.
What role does inspection play in temporary bridge safety?
Inspection is essential to maintain safety and integrity. Regular visual checks catch issues like deck wear, loose fasteners and settlement; detailed assessments should follow extreme events or heavy use. Load testing and instrument monitoring can validate capacity under real conditions. A documented inspection plan ensures compliance and informs repair or posting decisions, improving operational safety.
How can project‑specific data improve load capacity calculations?
Project‑specific data—span, width, expected traffic, and geotechnical information—improves calculation accuracy by reflecting real site conditions. Precise inputs let engineers model load paths, support reactions and material properties more reliably, reducing overdesign or underdesign and optimizing cost and safety.
What common challenges occur during temporary bridge deployment?
Typical challenges include limited site access, tight schedules and changing environmental conditions. Logistics—transporting materials to remote sites and ensuring quick, safe assembly—can be difficult. Unanticipated site issues like poor soils or weather can complicate installation. Clear communication, thorough planning and flexible design choices help mitigate these challenges.
What should be considered when planning load testing for temporary bridges?
For load testing, consider the bridge’s design capacity, expected traffic and consequences of failure. Testing is especially important for critical crossings or marginal calculations. Simulate realistic loads and schedule testing after major construction activities or severe weather. Document the test procedures and results for compliance and future reference.
